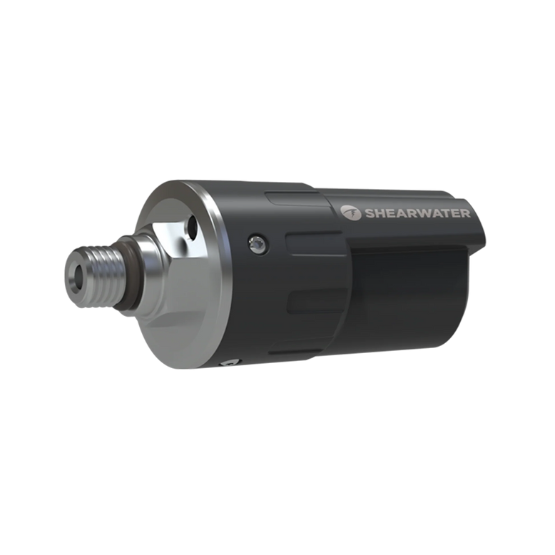

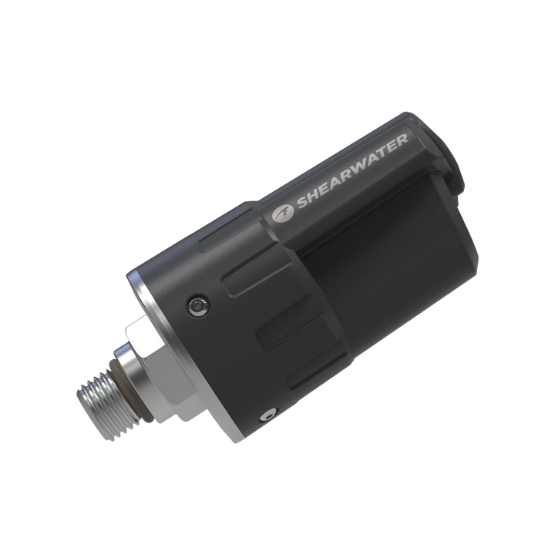

Shearwater Swift Transmitter

Next generation smart transmitter allows divers to read gas management data directly from your air integrated dive computer. The Swift has collision avoidance protocol which allows for multiple transmitters to be used at the same time, with a lower likelihood of dropped communications. The Swift is designed and built in Canada for demanding divers of all proficiency levels.

Full Features:

• Advanced collision avoidance system ensures reliability using multiple transmitters
• Randomized transmit interval allows for reliable simultaneous use of multiple Swift transmitters
• LED status indicator
• Easy ‘no tools’ installation and removal on divers first stage
• Compatible with all existing air integrated Shearwater dive computers and many other computers already on the market

Technical Specs:

• Depth limit: 200msw
• Operating temperature range +4C to +34C
• Short-term (hours) temperature range: -10C to +50C
• Pressure port: 7/16″ = 20NF
• Rated air pressure: 300 bar / 4350 psi
• Pressure reporting resolution: 0.14 bar / 2 psi
• HP port proof pressure: 450 bar / 6525 psi
• Accuracy: 5% full scale
• Zero offset: <3.5 bar (50 psi)
• Activation pressure: 7 bar (100 psi)
• De-activation pressure: 3.5 bar (50 psi)
• Cover screws: 1.5mm hex
• Body o-ring: 24×1.5mm
• HP port o-ring: A5568-904 75A

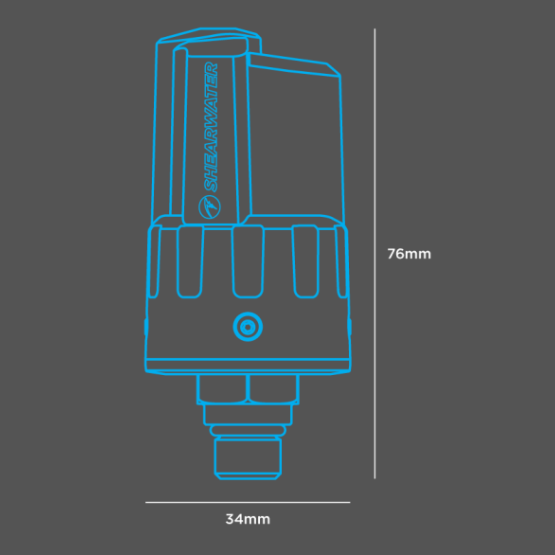

Dimensions

• Size 76mm (L) x 34mm (D)
• Weight 135g

Battery:

• Battery type: CR2 3V Lithium (User replaceable)
• Ships with and recommended battery type: Panasonic CR2 Industrial
  Lithium
• Battery Capacity (approx): 2.55 Wh
• Battery life: Up to 300 dive hours (HP pressure present) 5 year storage time
